800 kNm long-boom crane

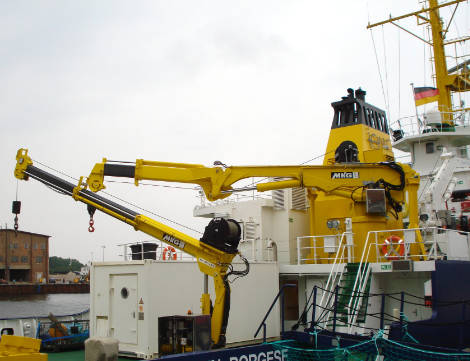

MKG hydraulic marine crane, model HMC801, basic unit a2L, knuckle boom type with extended main boom and special crane base for stationary mounting, cranked column in all-steel design, slewing ring gear with slewing gear assembly and hydraulic slewing connections for 360° continuous slewing, two slewing motors for slewing torque 124.000Nm, jib twice hydraulically extendable under load to max. reach of 12m. SWL 4.600kg at 12m. All rams are double acting and the piston rods are twice chromium plated.


Complete hydraulic system consisting of:

one lifting ram, one jib ram, two extension rams, 2 hydr. slewing motors, Danfoss control valve block with individual control valves (high precision) for luffing, slewing, jib, extension, winch. Load holding valves at all cylinders plus overload protection device as well as visual alarm at 90% of max. load. Emergency stop-button at all controls as per CE-standard. Pressure reservoir at lifting cylinder to minimize centrifugal forces acting on the load-bearing components of static mounted cranes.


Hydraulic winch 4.500kg pull at single line/7th layer, rope dia. 13mm, rope length 400m (spin-resistant), incl. pulley, control valve and safety hook with latch.


This crane is manufactured according to German Standard DIN 15018/EN12999 to meet marine specifications for provision/service crane type "A" at 5°heel/2° trim with full load.




KTL-treatment of steel structure, i.e. electrostatic coating process (cataphoretic painting in accordance with corrosion protection class C5, DIN EN ISO 12944-2) against corrosive environment, crane base - St 52-3, column/booms - St e 460, cylinder tube - St 52-3, piston rods – twice chromium plated (option: stainless steel), bushings - seawater proof bronze, (optional: hose-ends/clamps/ piping in stainless steel), sandblasting, 300µ-coat colour system, painting RAL 9005 - black or any other RAL colour at customers choice.


HBC radio remote control 6 functions consisting of transmitter and linear lever controls, receiver, charger with 2 re-chargeable batteries, add. 15m cable control, automatic frequency-search at start-up, emergency-off, multiple-speed choice.


3B6 black box with digital display, load limiting device, trouble shooting by error codes, supplied in a stainless steel housing.


LS (load sensing system)
